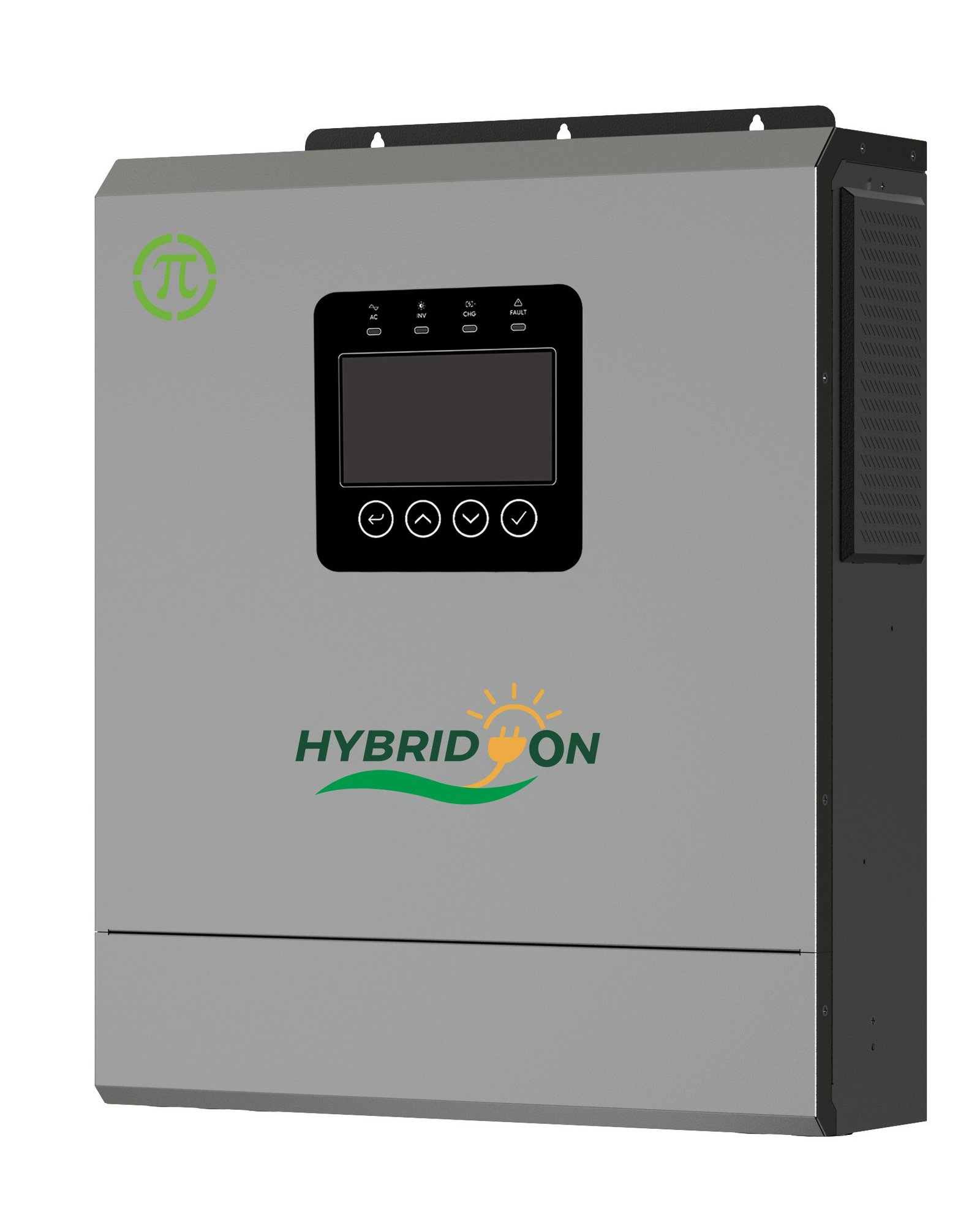

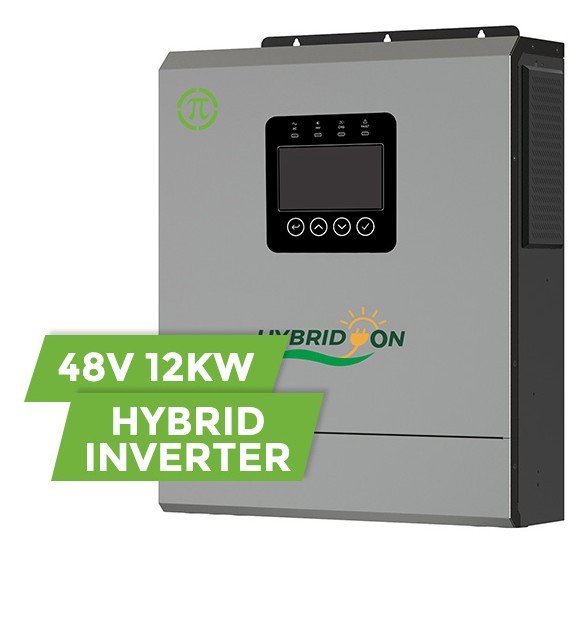

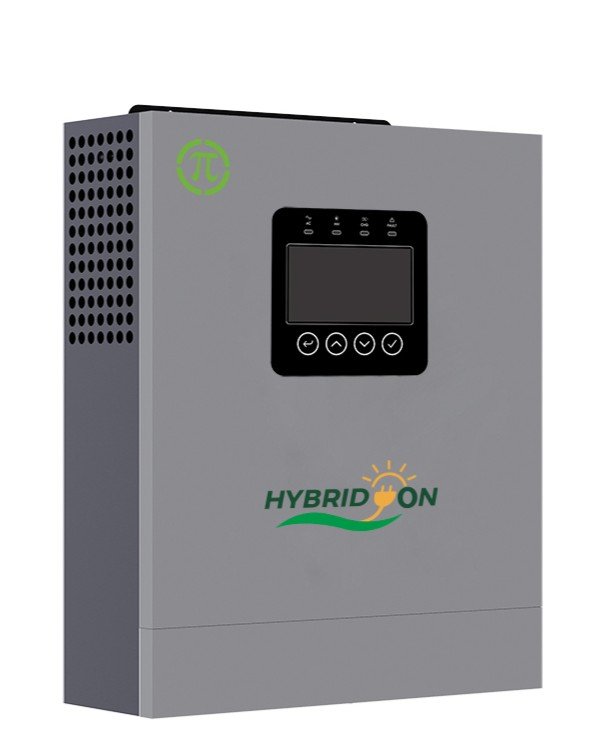

Hybridon 12KW 48V Hybrid Solar Inverter | 500V 45A DUAL MPPT | SINGLE PHASE Lithium & Lead-Acid Compatible
Original price was: ₹189,999.00.₹149,999.00Current price is: ₹149,999.00.
Hybridon 12KW 48V Hybrid Solar Inverter is a high-efficiency pure sine wave inverter designed to provide reliable solar power for homes and commercial spaces. It features a powerful MPPT charge controller, dual power source operation (solar + grid), lithium and lead-acid battery support, and advanced multi-level protection for long-term durability.
Hybridon 12KW 48V Hybrid Solar Inverter delivers a stable and efficient power solution for modern energy needs. Designed with advanced MPPT technology, it intelligently extracts maximum power from solar panels to ensure higher energy productivity throughout the day.

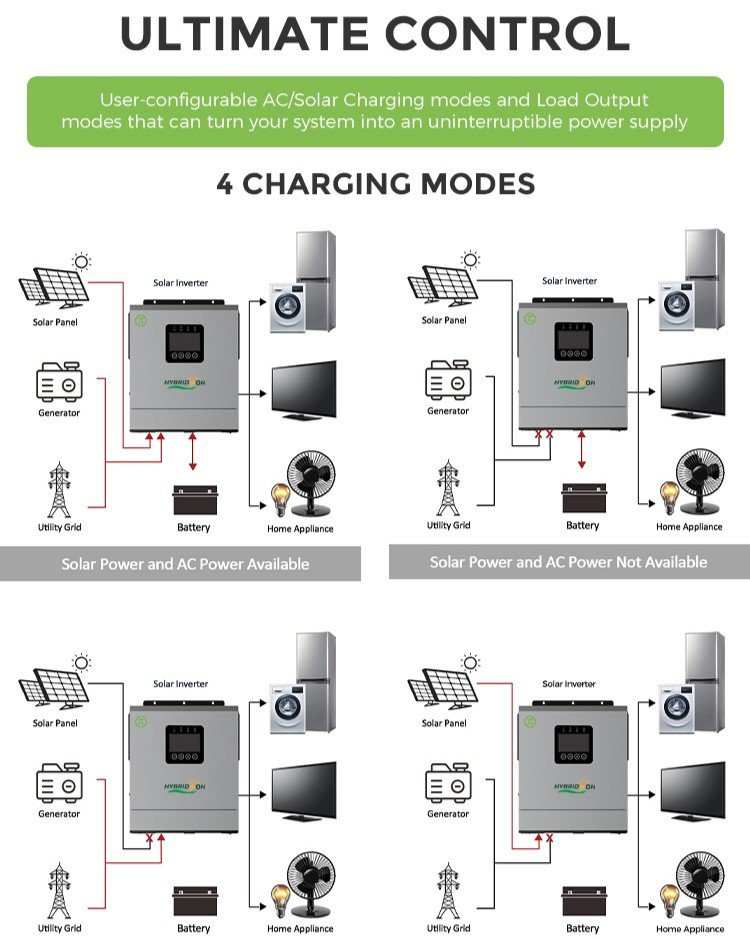

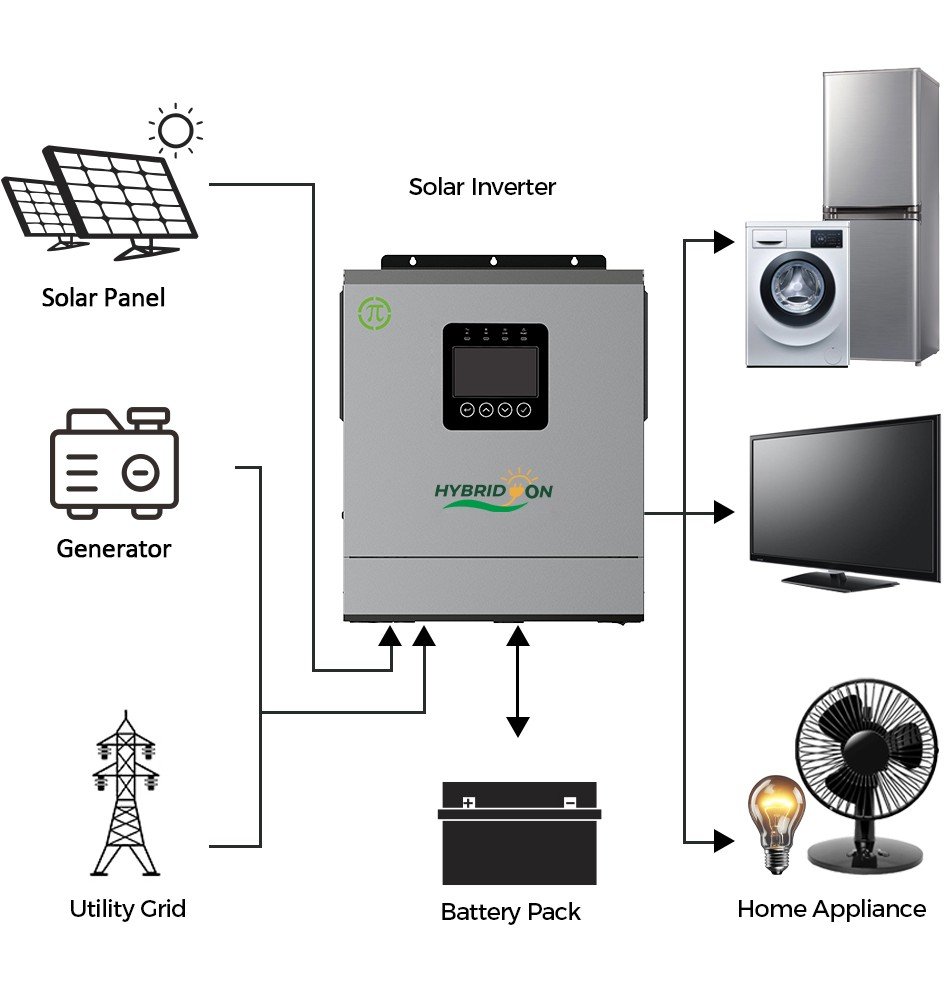

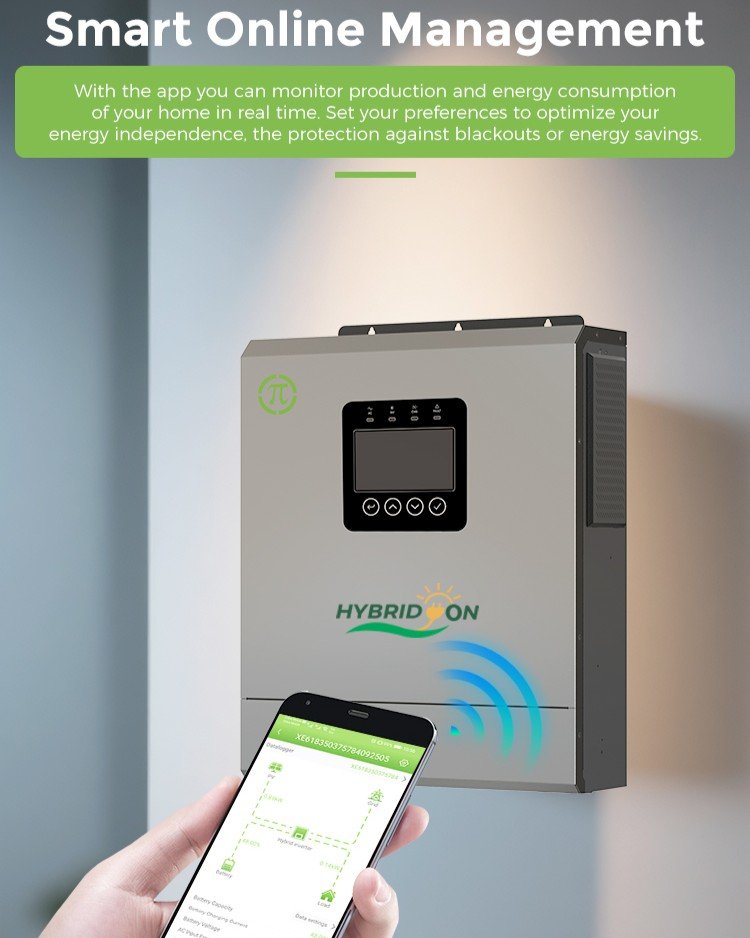

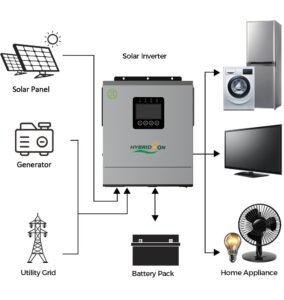

This inverter offers the flexibility of grid-assistance and generator compatibility, allowing smooth power transition during outages. The LCD control panel enables customizable settings such as AC/Solar priority and charging preferences, making it adaptable for various applications.
The 48V battery architecture supports heavy loads while reducing heat buildup and extending battery life. With built-in protections such as overload, short-circuit, and over-temperature shutdown, this inverter ensures safe and reliable operation.
Ideal for homes, offices, shops, and small businesses — it can efficiently run appliances such as refrigerators, air-conditioners, deep freezers, computers, pumps, CCTV systems, and lighting.
📊 Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | HY-H48120M45P10
6075e283956b528c5baae22d84cba700 |
| Rated Output Capacity | 12KW |
| Battery Voltage | 48V DC |
| Output Voltage | 208/220/230/240 VAC |
| Waveform | Pure Sine Wave |
| Frequency | 50/60Hz Auto Adaptive |

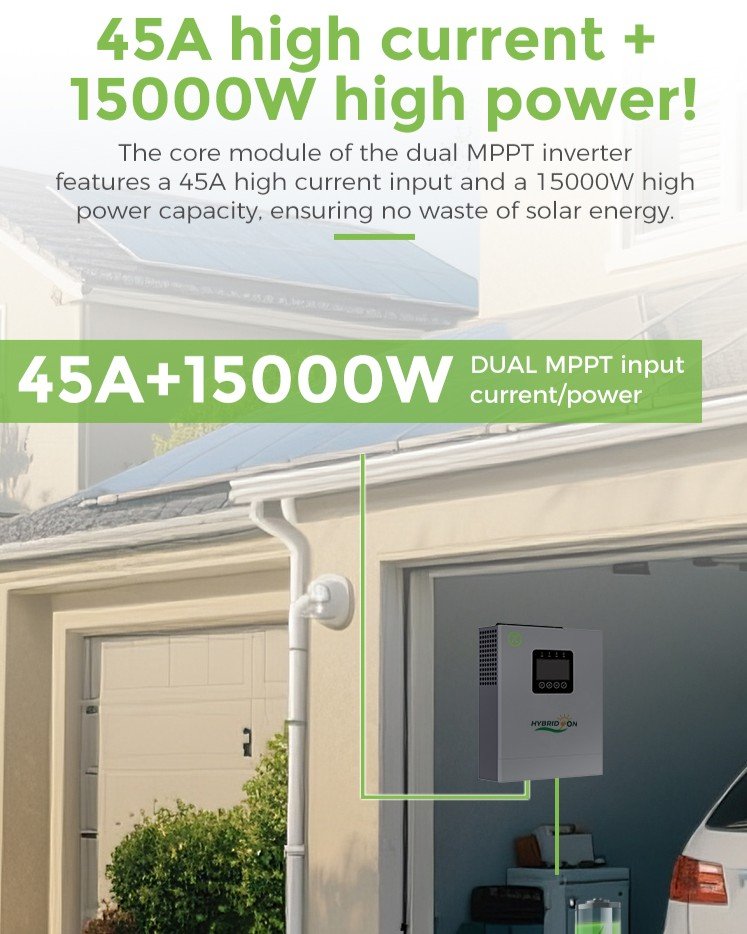

| Max PV Input Power | 15000W |
| MPPT Voltage Range | 60–500V DC |
| PV Start-up Voltage | 60V DC |
| Max PV Open Circuit Voltage | 500V DC |
| Max PV Charge Current | 45A |
| Max AC Charge Current | 60A |
| Combined Max Charging Current (PV+AC) | 160A |
| Supported Battery Types | Lithium / Lead-acid |
| Peak Efficiency | 94% (Battery Mode)
6075e283956b528c5baae22d84cba700 |
| Switching Time | 10ms (UPS) / 20ms (GEN) |
| Display | LCD |
| Communication Interfaces | RS485 / RS232 / USB / Dry Contact |
| Temperature Range | -10°C to 50°C |
| Product Size | 410 × 336 × 110 mm |
| Net Weight | 12kg |
| Protection Rating | IP21 |
🔋 Key Features
-
Pure sine wave output for sensitive electronics
-
High-efficiency 500V MPPT solar charging
-
Automatic grid recovery start
-
Customizable charging priority
-
Generator compatible
-
Smart battery performance optimization
-
Strong safety system: overload, short circuit, thermal protection
-
Reliable solution for medium to high electrical loads
| Weight | 12 kg |
|---|---|
| Dimensions | 336 × 110 × 410 in |
